YKF-KA07

Colors

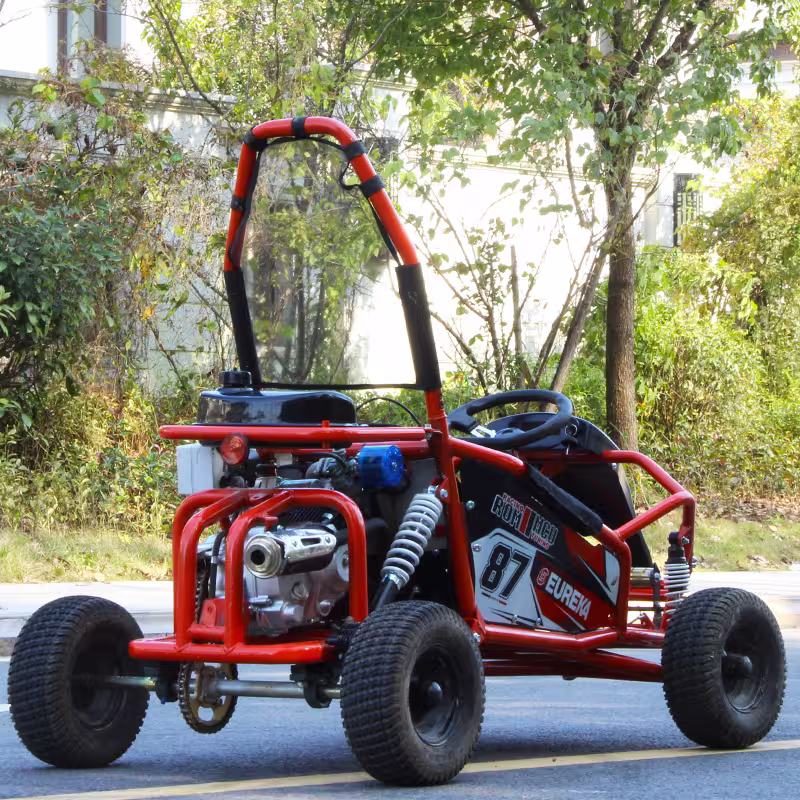

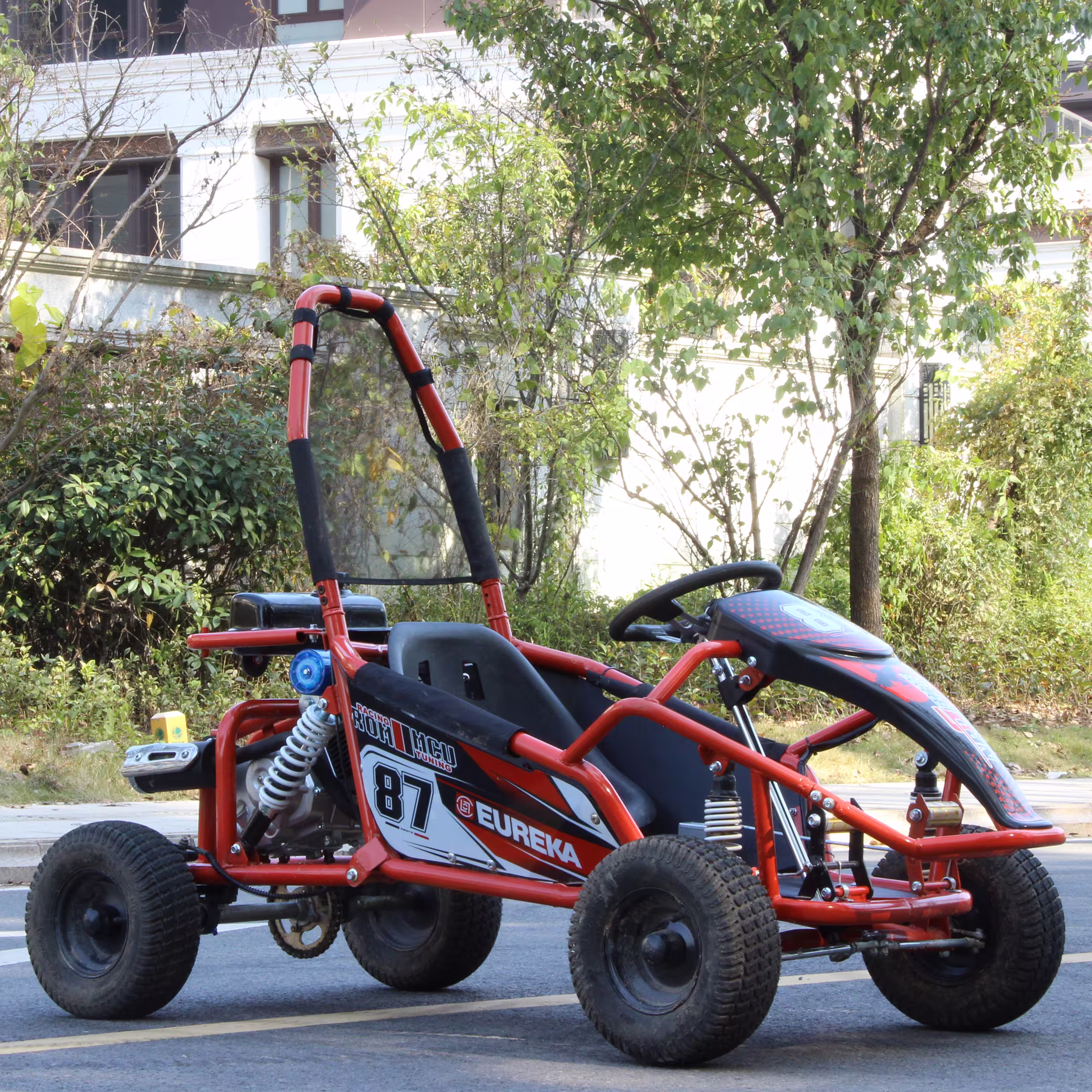

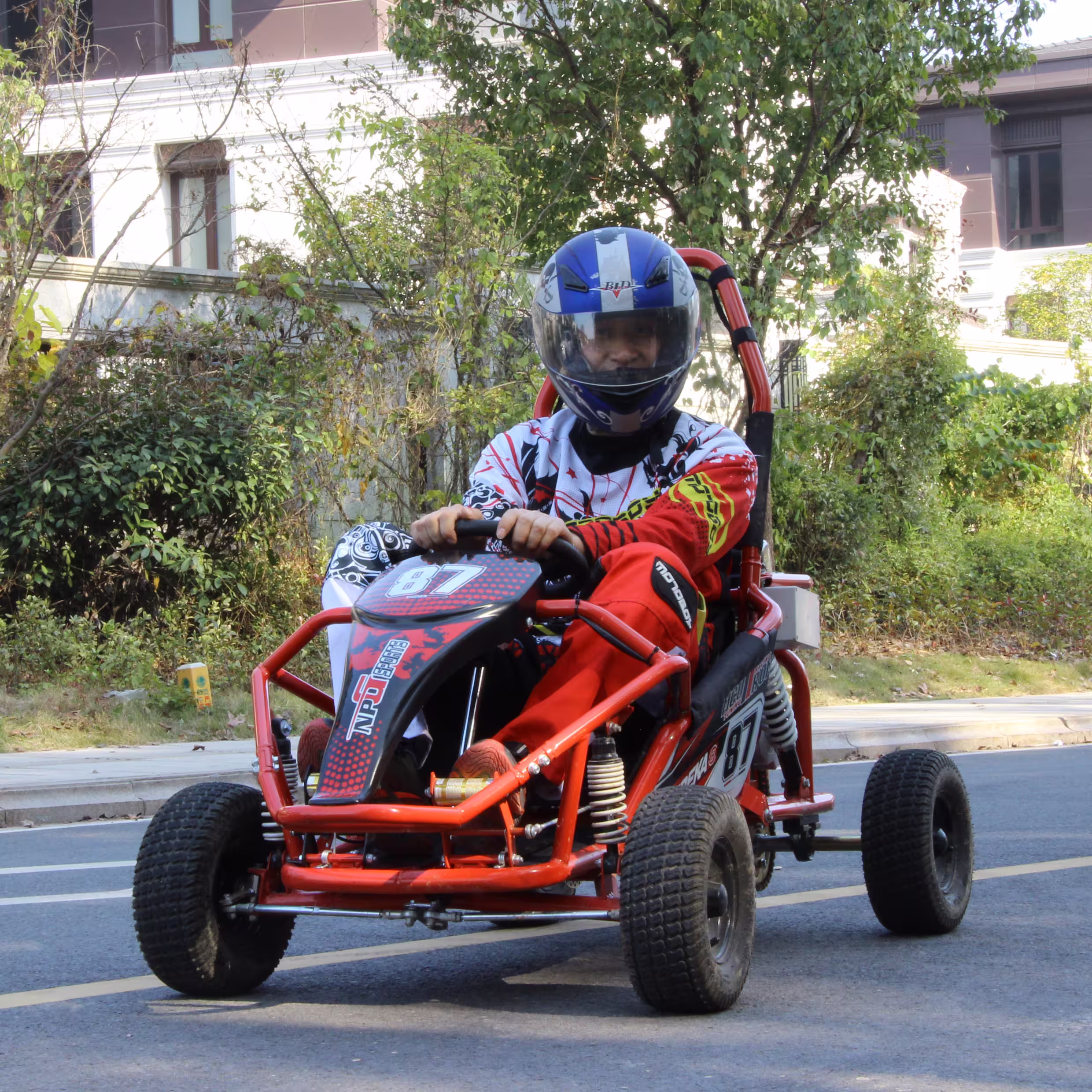

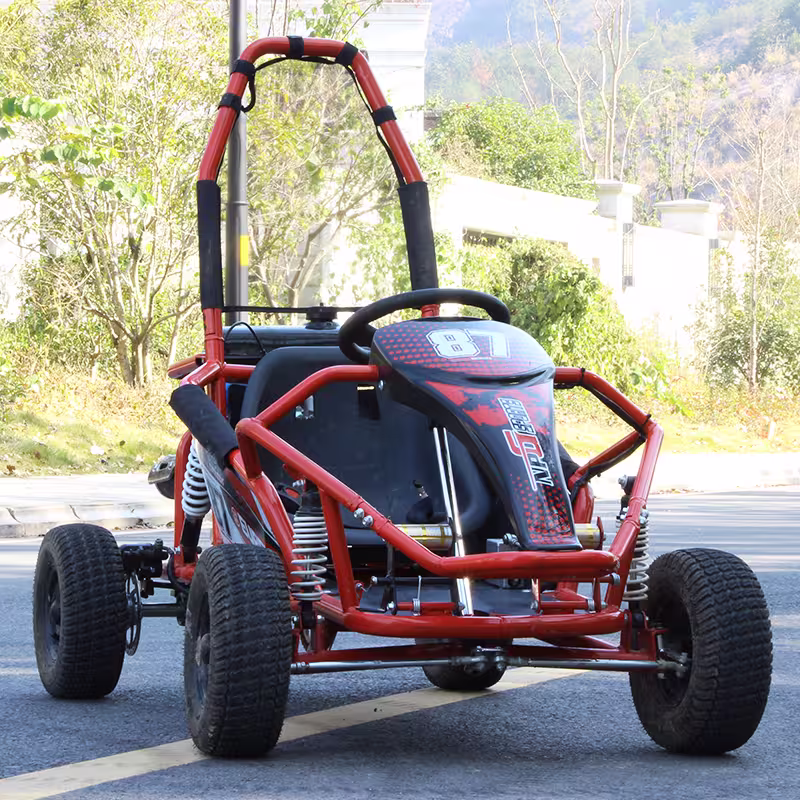

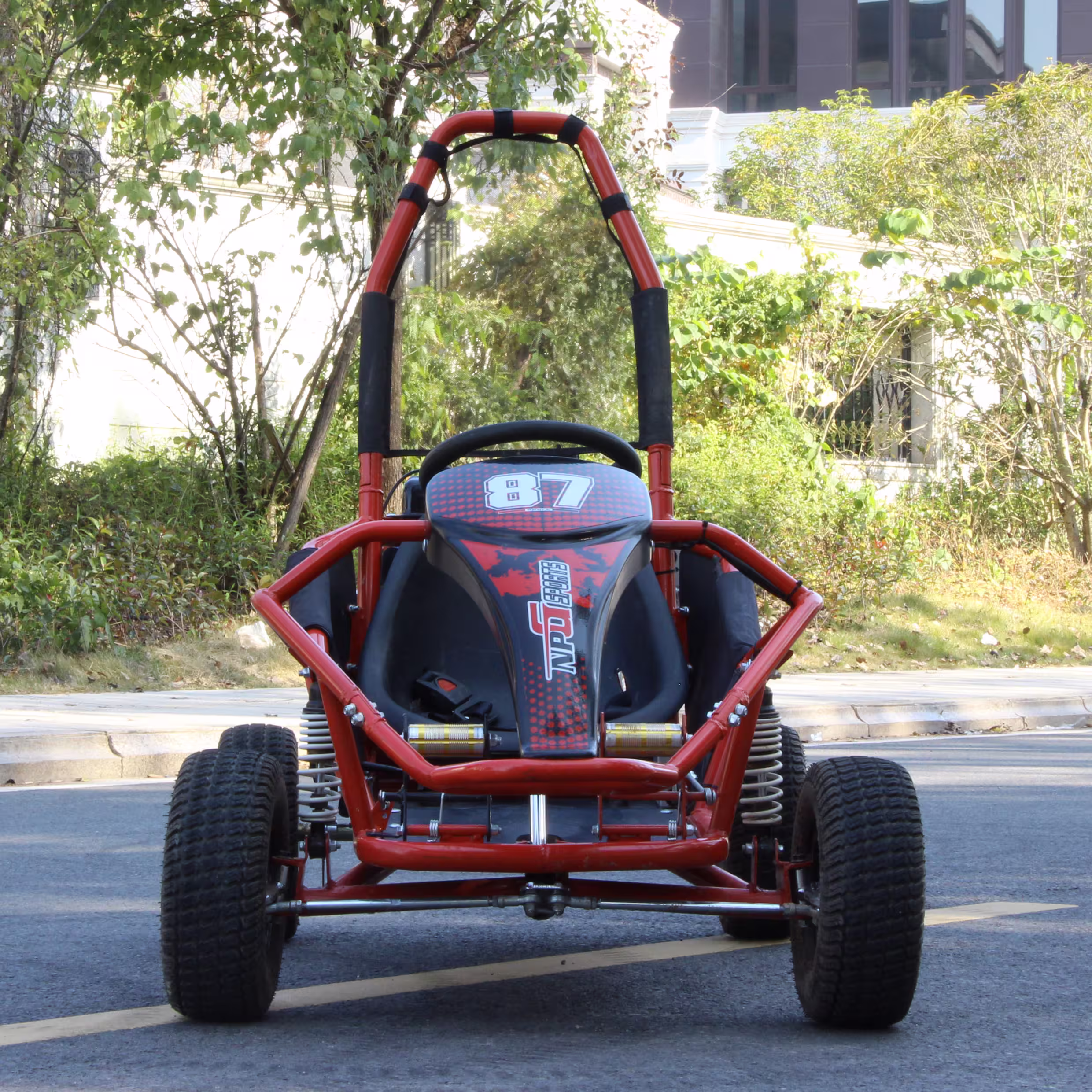

The YKF-KA07 is a 110cc automatic go-kart built for young drivers and recreational riders. With a smooth CVT transmission, hydraulic disc brakes on all wheels, and a 200kg load capacity, it delivers safe, easy-to-handle fun for backyards, trails, and family tracks.

Engine Type110CC, Automatic, Wave Engine
ClutchCVT, D-N-R
TransmissionChain Drive
Max Speed (km/h)55 km/h
Dimensions And Weight1650x830x1200mm
SKU: YKF-KA07 Category:

$558.00

Quantity Price Discount
1-5 $558.00 0%
6-30 $508.00 $50.00
31+ $458.00 $100.00
Secure B2B Order Process

Orders are confirmed by quotation and Proforma Invoice. T/T, L/C for qualified bulk orders, and Alibaba trade assurance are available upon request.

Pre-Shipment Quality Check

Each vehicle is inspected before shipment. Photos, videos, packing details, commercial invoice, and packing list can be provided.

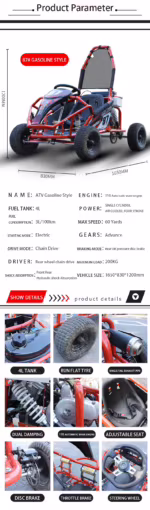

Technical Specification
Engine Type
110CC, Automatic, Wave Engine
Clutch
CVT, D-N-R
Start Mode
Electric Start
Driving Type
2WD
Transmission
Chain Drive
Front Suspension
Hydraulic with Damping
Front Brake
Hydraulic Disc Brake
Rear Brake
Hydraulic Disc Brake
Front Tire
6"(inch)
Rear Tire
6"(inch)
Climb Up
25°
Fuel Consumption
3L/100km
Max Loading (kg)
200kg
Max Speed (km/h)
55 km/h
Battery
12V 5AH
Rim Type
Steel Rim
Dimensions And Weight
1650x830x1200mm
Package Size And Weight
100kg, 1350x830x700mm
Cooling System
Air Cooling
Quality Inspection
    Sourcing
  1. 01AP

    Accessories Purchase

    Vetted-supplier sourcing of frames, engines, drivetrain & electricals with full traceability.

  2. 02IQC

    Incoming Quality Control

    AQL sampling on every inbound lot; non-conforming parts rejected and returned.

  3. Production
  4. 03PA

    Product Assembly

    Torque-controlled assembly lines with station-level checklists for ATV, UTV, dirt & pit bikes.

  5. 04PQC

    Process Quality Control

    In-line inspection at critical stations; defects routed back to assembly for rework.

  6. 05FP

    Finished Product

    Engine run-in, brake, lighting, throttle and road-test verification on each unit.

  7. 06OQC

    Outgoing Quality Control

    Pre-shipment AQL audit per ANSI/ASQ Z1.4; any failure loops back to assembly.

  8. Dispatch
  9. 07FW

    Finished Goods Warehousing

    Climate-controlled storage, serialized bin locations and FIFO dispatch queue.

  10. 08PS

    Packing & Shipping

    Export-grade crating, fumigation, container loading plans and BL documentation.

Closed-loop rework

When PQC or OQC detects a non-conformity, the affected unit is routed back to Product Assembly with a traceable defect ticket. Nothing moves forward until it passes — zero-escape to our customers.
